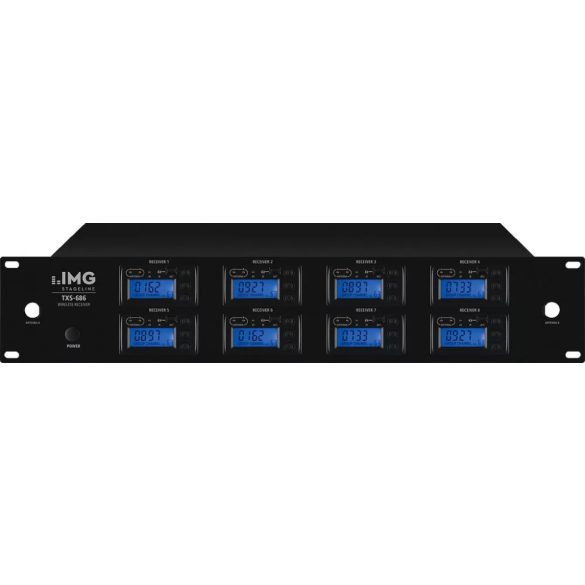

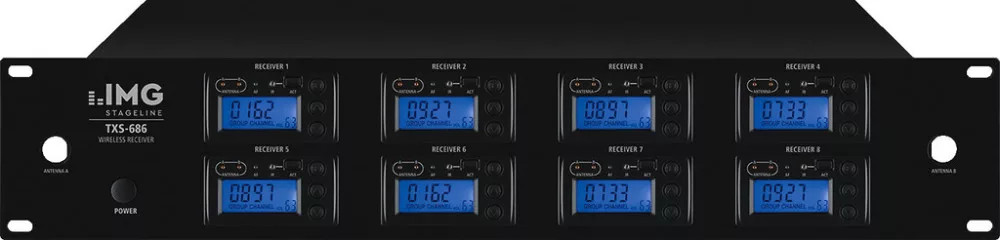

IMG TXS-686

8-channel multifrequency receiver unit,

with UHF PLL technology.

1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 channels each)
ACT function for transmitting selected frequency to pocket transmitter TXS-606HSE/2, tie clip microphone transmitter TXS-606LT/2, desktop microphone transmitter TXS-606DT/2 or hand-held microphone TXS-606HT/2 via infrared signal
Auto-scan
True diversity system with removable antennas (BNC connection)
Volume and squelch controls for each channel

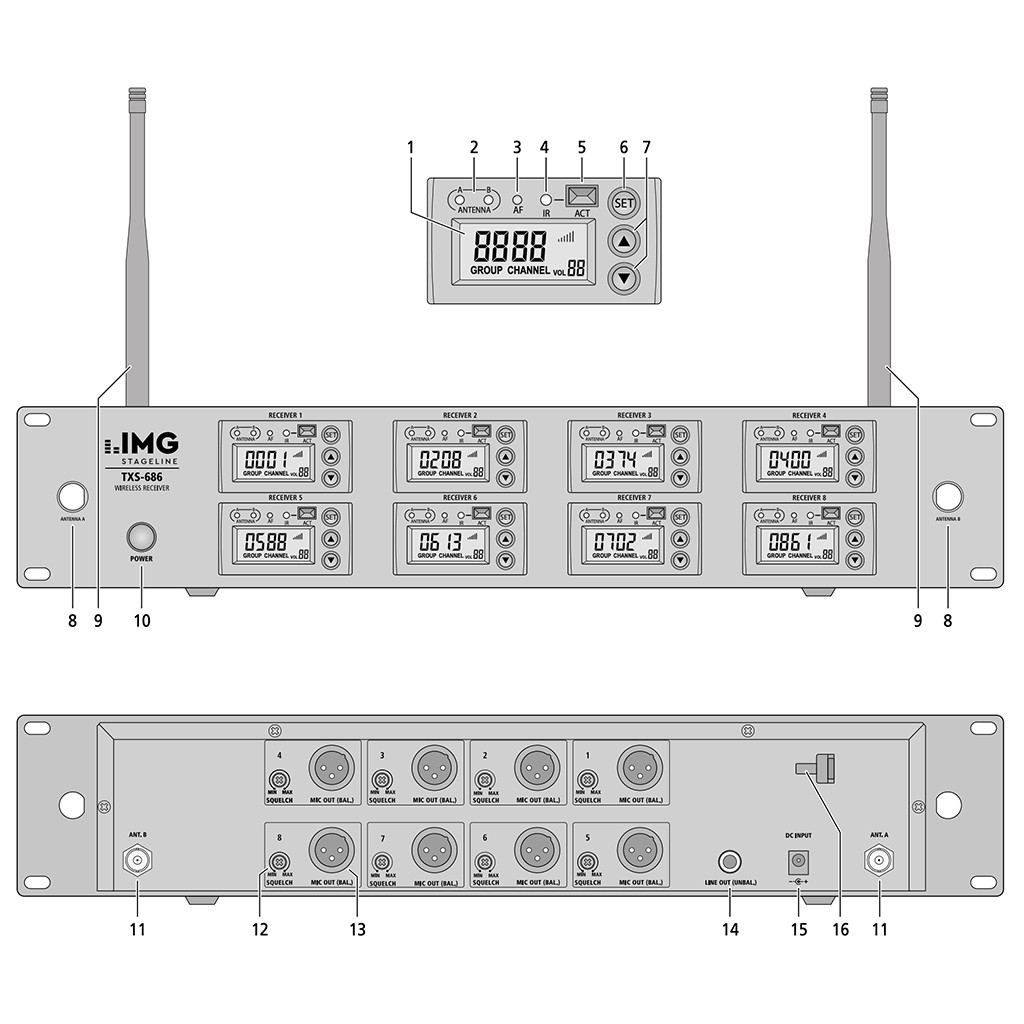

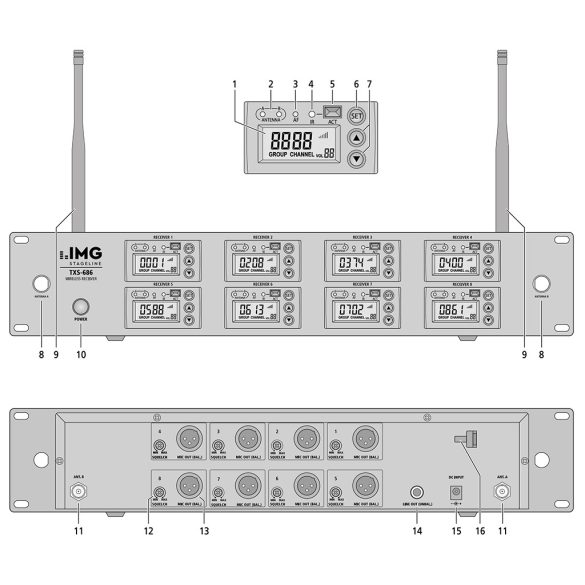

LCD for indicating group/channel, RF receiving level, AF audio level and additional LED display for indicating antenna A/B, audio signal of each channel
XLR output for each channel, bal.
6.3 mm jack output for mixed signal
8 V supply voltage for active antennas or antenna amplifiers is available
Robust metal housing
Supplied with power supply
482 mm (19") rack installation, 2 RU
